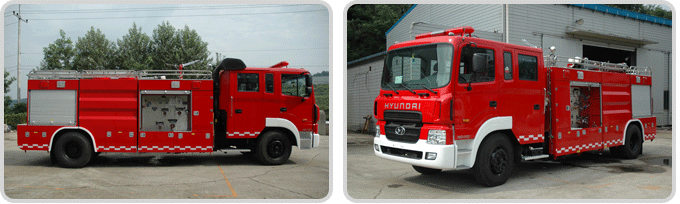

Model - FTP9DAH085MA
| CHASSIS - HYUNDAI BRAND - KOREA |
| 1 |
MODEL CHASSIS |
HD170 |
| 2 |
OVERALL DIMENSION
(L x W x CH) |
9,240 x 2,495 x 3,300 |
| 3 |
TOTAL MASS(KG) |
15,370 |
| 4 |
RATED PAYLOAD(KG) |
5,000 |
| 5 |
KERB WEIGHT(KG) |
10,000 |
| 6 |
CAPACITY(L) |
4,500(WATER) + 500(FOAM) |
| 7 |
CABIN |
TWIN CABIN STYLE
6 PASSENGERS(INCLUDING DRIVER) |
| 8 |
MAX POWER(HP) |
290 |
| 9 |
LIQUID TANK CAPACITY(L) |
200 |
| 10 |
DRIVER SYSTEM |
LEFT HANDLE |
| 11 |
MIN GROUND CLEARANCE(mm) |
285 |
| 12 |
TIRE |
12R22.5 |
| ENGINE |
| 1 |
MANUFACTURER |
HYUNDAI |
| 2 |
MODEL |
D6AB-D |
| 3 |
ENGINE TYPE |
DIESEL, IN-LINE 4 CYLINDERS, |
| 4 |
LET STANDARD |
EUR 2 |
| 5 |
DRIVING MANNER |
4 x 2 |
| 6 |
WHEELBASE(mm) |
5,850 |
| 7 |
MAX. SPEED(km) |
110 |
| CABINE |
| 1 |
STRUCTURE |
DOUBLE-ROW SEATS, 4DOOR |
| 2 |
SEATS |
1+5; 2 in front and 4 at rear |
| PUMP AND PIPELINE SYSTEM |
| 1 |
MANUFACTURER |
NAMYUNG |
| 2 |
PUMP TYPE |
KEP-PUMP A-1 |
| 3 |
DRIVER SYSTEM |
POWER-TAKE OFF(PTO) SANDWICH |
| 4 |
FLOW RATE(L/s) |
46 |
| 5 |
PRIMING HEIGHT(m) |
= > 7 |
| 6 |
INSTALLATION MODE |
REAR MOUNTED |
| FOAM SYSTEM |
| 1 |
MANUFACTURER |
FIRETEC co. ltd, Shilla Fire Co., Ltd., KOREA |
| 2 |
TYPE |
Around the pump proportioning system |
| 3 |
RATE |
Valve readjustment with rate 1.5%, 3%, 6% |
| MONITOR |
| 1 |
MANUFACTURER |
Shilla Fire Co., Ltd., Korea |
| 2 |
MODEL |
SL-23A |
| 3 |
FLOW RATE(Liter/min) |
2,400 |
| 4 |
SHOT LANGE(m) |
65 |
| TANK |
| 1 |
CAPACITY(L) |
4,500(WATER) + 500(FOAM) |
| 2 |
MATERIAL |
STAINLESS STEEL |
